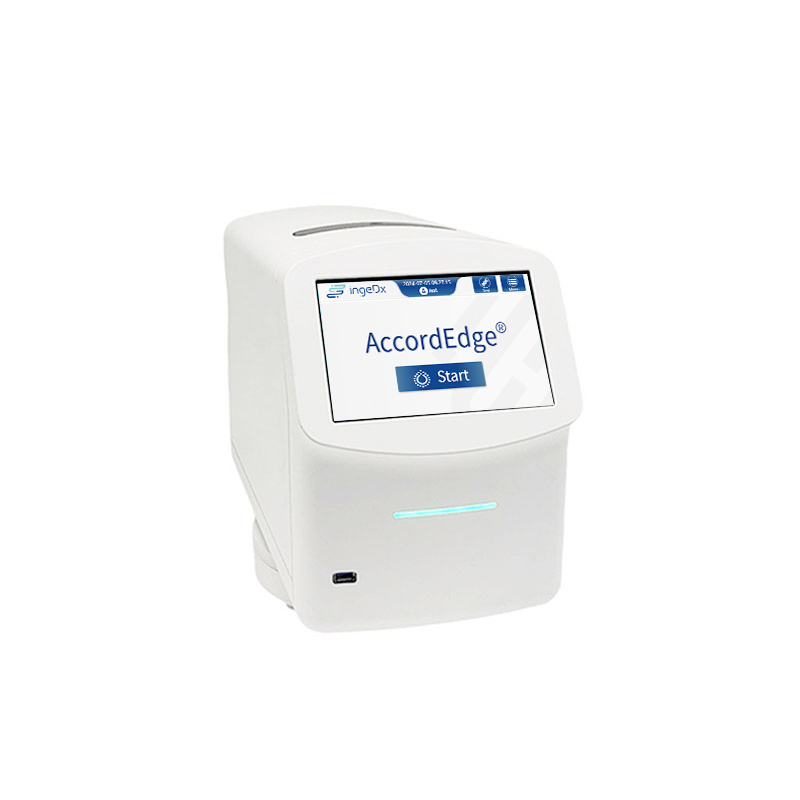

AccordEdge System Single Run (AE1134)

AE1134
AccordEdge (AE) System is designed to perform fully automated "sample to answer" “multiplex detection ”"point of care testing"molecular diagnostics in an ideal design for the physician’s offices, clinics, community hospital, lab research, emergency, inspection and quarantine, prawn park, clinical practice. Together with the fully contained thin film microfluidic pouch, the system can be used for the processes of cell lysis, DNA/RNA purification, template elution, molecular amplification and the optical detection. The system offers small footprint and easy-of-use configuration with 1-4 sample

Consult

Features
Technical Indicators
Overall Dimension

AccordEdge (AE) System is designed to perform fully automated " Sample to Answer " molecular testing in an ideal design for the physician’s offices, clinics or small laboratories.

Together with the fully contained thin film microfluidic pouch, the system can be used for the processes of cell lysis, DNA/RNA purification, template elution, molecular amplification and the optical detection. The system offers small footprint and easy-of-use configuration with 1-4 sample throughput.

· ingeDx AE System-Single Run (AE1134)
For single-sample runs, this is most suitable for use in a small clinical setting, typically processing 1-8 samples in a day. It has the lowest instrument cost.

▋▎ Highlights

♦ Easy to Use: < 3 min hands-on
♦ POCT: No need for training and PCR lab
♦ Rapid TAT: 45 min
♦ Multiplex Detection: 16+ plex
♦ Accurate and Sensitive: Lab test quality
♦ Contamination-free: Completely enclosed process

▋▎ Test Menu

Respiratory
ingeDx AE Flu A/B
ingeDx AE Flu A/B CoV-2
ingeDx AE CoV-2 RSV
ingeDx AE Flu A/B RSV
ingeDx AE Flu RSV hMPV EV RhV AdV
ingeDx AE Flu A/B Paraflu 1-4
ingeDx AE CoV-2/Flu/RSV
ingeDx AE SARS CoV-2
ingeDx AE Flu A/B MP
ingeDx AE MP

Sexually Transmitted Infection（STIs）Testing
OriGyn AE HPV
OriGyn AE HPV genotyping
OriGyn AE HSV 1/2
OriGyn AE TP
OriGyn AE TV
OriGyn AE TV/Mg
OriGyn AE NG
OriGyn AE UU
OriGyn AE Mh
OriGyn AE C. albicans
ingeDx AE GBS

Gastrointestinal
ingeDx AE Norovirus
ingeDx AE Rotavirus
ingeDx AE E. faecalis
ingeDx AE E. coli typing
ingeDx AE EV71/CA16/EV

CE Registration number:
RPS/3185/2023, RPS/3231/2023
Instrument Parameter

Instrument model：AE1134
Instrument Net Weight: 10.5 KG
Average Heating Rate:
Not less than 7.0℃/s（50℃-90℃）
Average Cooling Rate:
Not less than 5.0℃/s（90℃-50℃）
Module Temperature Control Precision:
Not greater than 0.5°C
Temperature Accuracy:
The absolute value of the difference between the measured value and the settemperature is not greater than 0.5°C
Fluorescence Intensity Detection Repeatability:
Not greater than 3%
Fluorescence Intensity Detection Precision:
Not greater than 5%
Temperature Control Range: Room temperature ~ 99°C
Instrument Dimensions: 389mm × 200mm × 279mm
Display Screen: 7 inch touch screen
Maximum Heating Rate:
Not less than 8.0℃/s（50℃-90℃）
Maximum Cooling Rate:
Not less than 6.0℃/s（90℃-50℃）
Module Temperature Uniformity:
Temperature difference within ±1°C range
Linear Correlation:
For 5 serially diluted samples, |r| not less than 0.980
Sample Volume: 10-300μL
Communication Interface: USB, Ethernet
Power: 140VA
